LFC Kit

Go Big

Use Your Own Projector

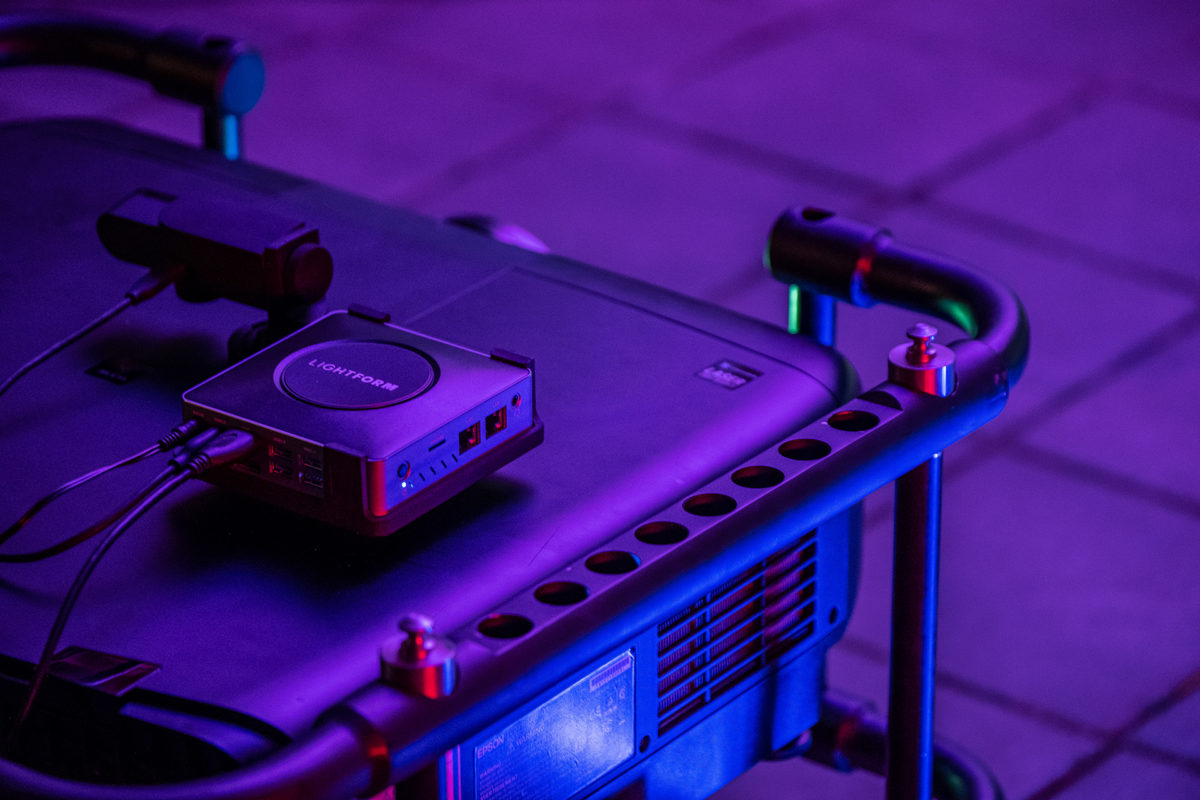

The LFC Kit included a versatile mounting system that fit a variety of setups for both small and BIG scenes. The LFC could be mounted to the projector, drop pole, ceiling, or anything that would fit each unique configuration.

Almost

Any Projector

Any Size Scene

The LFC was designed to use with almost any normal or short-throw projector.

Support For:

  • Throw Ratio: 0.5 – 2.0
  • Any distance: 1ft – infinity
  • Any brightness: 1000-100K lumens
  • Maximum output WUXGA (1920 x 1200)
    (4K projectors supported with upscaling)

Don’t know your projector’s specs? Look them up here.

* See the detailed list of computer requirements here and the projector requirements here.

What was in the Kit?

Lightform
Compute (LFC)

Compact compute for scanning & media playback. Intel Gemini Lake N4000 w/ 8GB RAM.

Logitech
Brio

4K color camera for scanning with adjustable focus & field of view.

Projector
Mounts

Projector mounts for compute & camera, with adhesive bases for 3 projectors.

Lightform
Creator

Content creation software. A perpetual license was included.

Powered by

Lightform Creator

Content creation software using computer vision.

Made with LFC

Lightform LFC could be used with almost any projector to bring small, medium & large sized scenes to life.

LFC: faster than LF1

LFC’s more powerful processor compared to LF1 means faster scan times and overall better performance.

Processor

LFC
2.6 GHz
LF1
1.2 GHz

GPU

LFC
144 GFLOPs
LF1
32 GFLOPs

Scan Speed

LFC
<60
LF1
>90 seconds

Memory

LFC
8 GB
LF1
2 GB

Wi-Fi

LFC
5.0 & 2.4 GHz
LF1
2.4 GHz

Throw Ratio Support

LFC
0.5 - 2.0
LF1
0.8 - 1.8

Robust fanless design

Perfect for permanent installation

Processor
Intel Gemini Lake N4000
RAM
8GB DDR4
Storage
32 Gb eMMC
WiFi
2.4 GHz & 5 GHz
LAN
10/100/1000Mbps Ethernet
Power
12Vdc / 3.0A (36W)
supplied by external power adapter
Max output
1920×1200 (1 Projector)
Size
4.6 x 4.6 x 1.3 in
Weight
0.63 lbs
*Extra non functional ports: USB 3.0 x4, HDMI x1, LAN x1, Audio out, MicroSD.
